2015 Smec SL-25ASY
Have one to sell?
ConditionUsed
1 available
2015 Smec SL-25ASY Multi-Axis Mill-Turn CNC with 25.6" swing, 19.3" machining length, and 8" chuck. Features 24.8 hp power, 4,500 max RPM, live tooling, sub spindle, tailstock, and a 12-station turret. Ideal for precision machining.
All Tooling and Chucks come with this machine

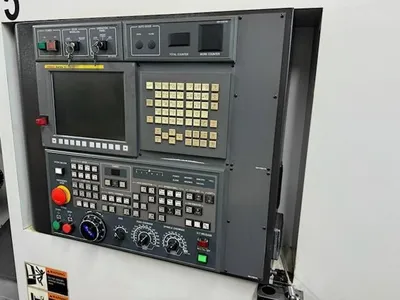

Control Type: Fanuc 0i-TD
Swing: 25.59"
Turning Diameter: 14.17"
Center Distance: 20.47"
Chuck Size: 8"
Bar Capacity: 2.56"
X Axis Travel: 9.25"
Y-Axis Travel: 3.94" (±1.97)
Z Axis Travel: 22.83"
B Axis Travel (Sub Spindle): 22.83"
C Axis Index: 0.001°
Rapid Traverse (X/Z): 709/472 ipm
Rapid Traverse Y-Axis: 945 ipm
Spindle Nose: A2-6
Spindle Speed: 4,000 rpm
Main Motor: 20 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 5,000 rpm
Live Tooling Motor: 7.5 hp
Sub Spindle: yes
Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 1.77"
Sub Spindle Nose: A2-5
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor (HP): 10 hp
Turret Capacity: 12
