New KENT KGS-84WM1 | Surface Grinder
Have one to sell?
ConditionNew
1 available
New

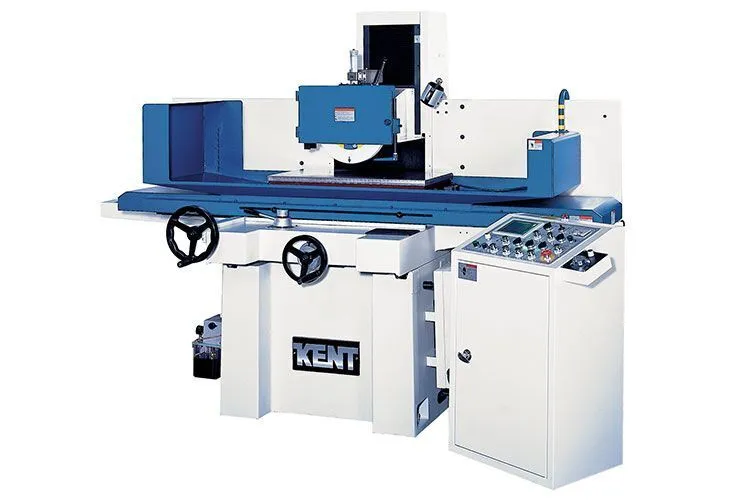

KENT KGS-84WM1 "Wizard Master" Programmable Precision Surface Grinder
STANDARD EQUIPMENT:
* V & Flat Turcite Table Ways
* Double V Turcite Cross Ways
* Programmable Auto Lube
* Electro Magnetic Chuck (16" x 32") w/ Console Built-In Variable Power Chuck Control
* Magnetic Separator & Coolant System
* Full Length Rear Splash Guard
* Two Front Table Splash Guard
* Overhead Parallel Dresser
* PLC Cross Feed
* Console Setting Cross Feed Travel
* Down Feed Manual Pulse Generator (MPG)
* Hydraulic Dresser
* Wheel Balancing Base x 1 pc
* Wheel Balancing Arbor x 1 pc
* Grinding Wheel x 1 pc
* Wheel Flange x 1 pc
* Table Dresser x 1 pc
* Halogen Work Light x 1 pc
* Max Travel (Longitudinal x Cross): ................................. 36.62" x 17.75"
* Max Distance Spindle Center to Table: ........................ 23.62"
* Rough Cutting Down Feed Increment: ........................ 0 - 0.00995" (in 0.000050" Calibration)
* Fine Cutting Down Feed Increment: ............................. 0 - 0.00995" (in 0.000050" Calibration)
* Spark-Out Times: .................................................................. 0 - 99 Seconds
* Manual Pulse Generator Resolution: ............................ 0.000050" / 0.0005"
* Grinding Wheel (OD x T x ID): ......................................... 14" x 1.5" x 5"
* Spindle Motor: ....................................................................... 7.5 HP
* Hydraulic Motor: ................................................................... 3 HP
