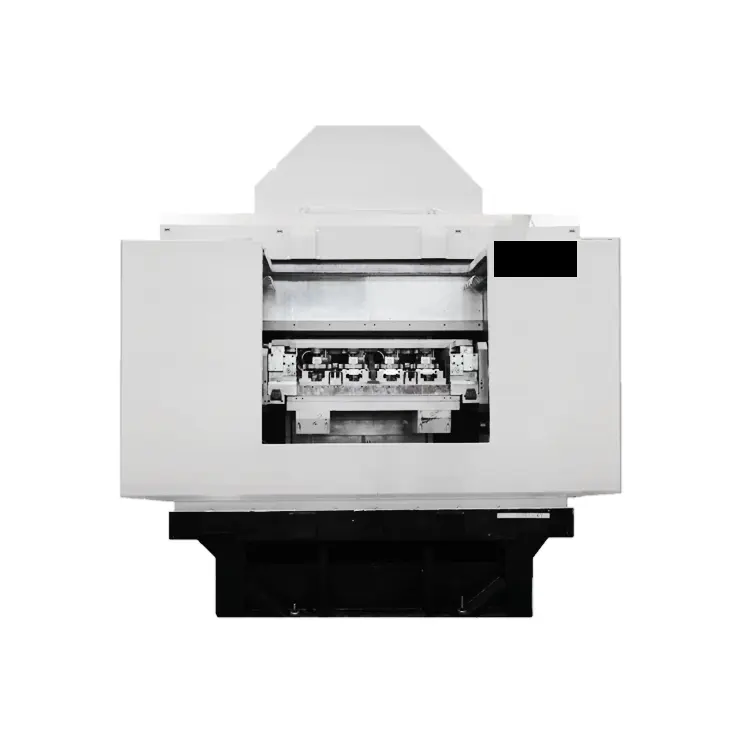

KOMATSU NTC Horizontal 4-spindle machining center KH440

Description

Parallelly coordinated 4 spindles and tilt table significantly improve area productivity in the machining of small parts.

Ultra-high productivity machining center

• 4 spindle units mounted parallelly on 1 work head.
Space saving, manpower saving and energy saving are achieved. By adopting HMC concept, chips to be collected directly coolant trough below the machining area, reducing manual intervention in the machine and supporting continuous long-hour operation.

Main features

Simultaneous machining with 4 parallel spindles
• 4 workpieces can be machined simultaneously
such as small housings, connecting rods, links, manifolds, crankshafts, camshafts, etc.

Space-saving and manpower-saving
• [Exanmple]
1-spindle HMC : 10 machines x 2 lines, total 20 machines
4-spindle HMC : 7 machines x 1 line, total 7 machines only
Contributes to reduce space and man-power.

Simultaneous 4-spindle ATC
• Adopts an arm-less 4-spindle ATC system.
Tool magazine can store 32 tools, means 8 varieties of tool can be stored. It achieves process integration and area productivity.

Tilt table mounting, jig design and production, line proposals
• Tilt table can be mounted to integrate machining process. NTC designs and manufactures workpies fixture jig. NTC offers not only machining center but also total line solution including material handling.
