Specifications:
Machining Stroke (X x Y x Z) 15.75" x 11.81" x 11.81"
Chuck to Table Clearence 7.9" ~ 19.67"
Worktank Size 33.5" x 23.6" x 13.8"
Table Size 27.6" x 23.6"
Tank Type 3-Sided Drop Tank
Maximum Workpiece Weight 1,540 lbs
Maximum Electrode Weight 110 lbs
Rapid Travel Speed 78.74 in/min
Electrical Requirements 200-220V/3Phz/60Hz
Machine Footprint Dimensions 68.9" W x 80.7" D x 93.1" H
Machine Total Weight 8,195 lbs
Equipped With:
* Mitsubishi 700 Series CNC Control
* 80 Amp Power Supply
* 3 Sided Auto Drop Tank
* 20 Position Automatic Electrode Changer
* C Axis with System 3R Macro Chuck
* Remote Hand Pendant

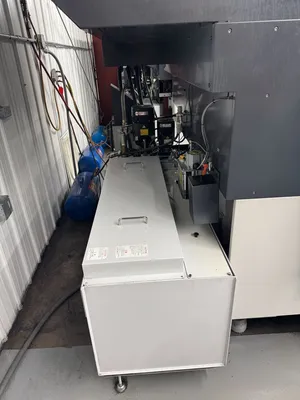

* Electric Chiller
* Transformer 30 kVA P480/240V S208V
Mitsubishi Control
