| Power Pack | 120 A | 120 A |
| Table Size-W | 23.6" | 599.44 mm |
| Table Size-L | 33.4" | 848.36 mm |
| X | 25.6" | 650.24 mm |
| Y | 17.7" | 449.58 mm |
| Z | 13.8" | 350.52 mm |
| Control | CNC (Mitsubishi 700) | CNC (Mitsubishi 700) |
| Dimensions | 86.41" W x 99" D x 103" H | 86.41" W x 99" D x 103" H |
| Weight | 11,880 Lbs. | 11,880 Lbs. |
Specifications:
Machining Stroke (X x Y x Z) 25.6" x 17.7" x 13.8"
Chuck to Table Clearence 16.7 ~ 30.5
Worktank Size 43.3" x 31.9" x 17.7"
Table Size 33.5" x 23.6"
Tank Type 3-Sided Drop Tank
Maximum Workpiece Dimensions 41.3" x 29.9" x 13.8"
Maximum Workpiece Weight 4,409 lbs
Rapid Travel Speed 78.07 in/min
Electrical Requirements 200-220V/3Phz/60Hz
Machine Footprint Dimensions 86.41" W x 99" D x 103" H
Machine Total Weight 11,880 lbs
Equipped With:

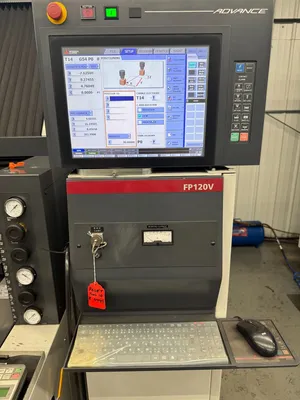

* Mitsubishi 700 Series CNC Control
* 120 Amp Power Supply
* 3 Sided Auto Drop Tank
* 20 Position Automatic Electrode Changer
* C Axis with System 3R Macro Chuck
* Remote Hand Pendant
* Electric Chiller
* Transformer 30 kVA P480/240V S208V
