Used HANSVEDT WORKMAN | Sinker EDM

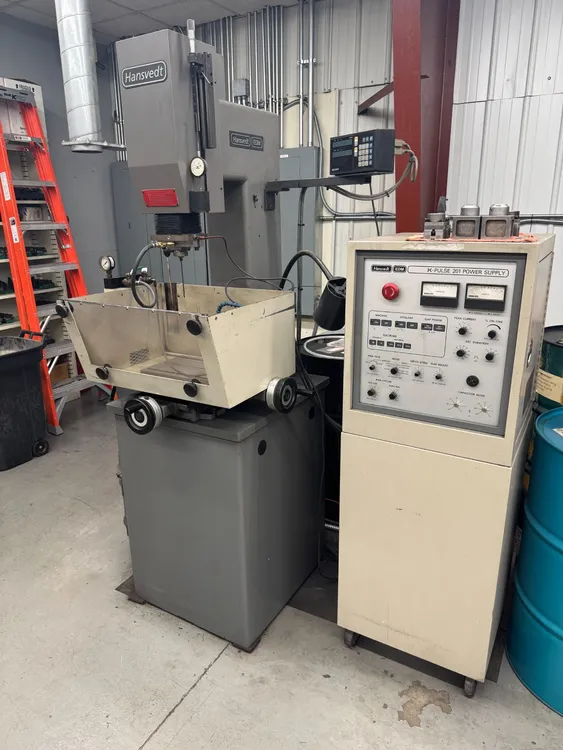

20 AMP Hansvedt Workman, Sinker Type EDM Machine with H- Pulse 201 Power supply, S/N AP17923
•
• Machine Description:
•
• Table size 9” x 15”
• Table Travels 6” x 8”

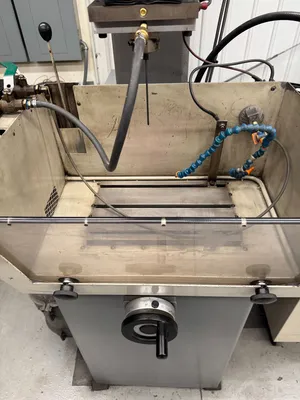

• Work Tank 16” x 24” x 11” High
• Platen to Table Max, 18”
• Ram Travel 8”
• Platen Size 5.75” 4”
• Max. Electrode Weight 75 LBS
•
• Equipped With:
•

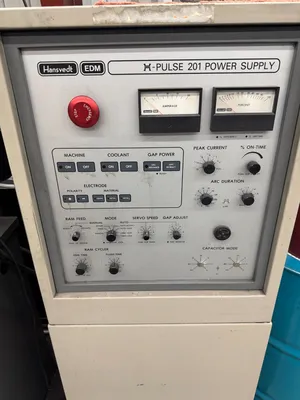

• H – Pulse 201 Power supply
• SIMPLE, UNDERSTANDABLE SPARK& SERVO CONTROLS
• -"SERVO CONTROLS" FEATURING DITHER, MANUAL, EDGE FINDER,
• AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
• SERVO SPEED& GAP ADJUST
• -"EDM CONTROLS" LOW PEAK CURRENT, ARC DURATION
• (.5 TO 1843 MICROSECONDS), PEAK CURRENT, POLARITY,
• ELECTRODE MATERIALS & % ON-TIME SELECTIONS
• FOR ULTRA-FINE FINISHING
•
• DC SERVO & BALLSCREW DRIVE FOR RAM
• RAM CYCLER PROVIDES UP/DOWN MOVEMENT TO PROMOTE BLIND
• CAVITY FLUSH
• "GAP MONITOR" AUTOMATIC DC ARC PROTECTION SYSTEM
• MICROMETER DOWN STOP W/AUTOMATIC RETRACTION
