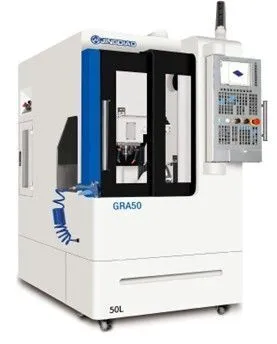

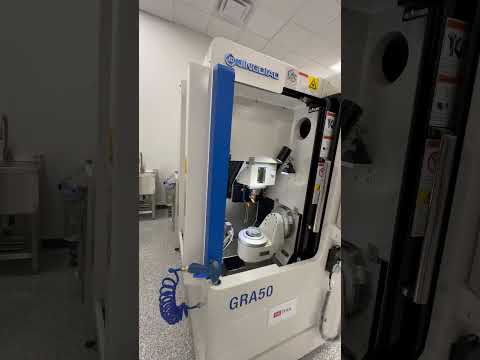

JINGDIAO GRA50 5-AXIS COMPACT VMC

JINGDIAO GRA50 5-AXIS VMC

Machine Standard Configuration:

Machine Main Body X/Y/Z travel: 235/210/175 mm, A travel: -15°～ +125°, C travel: 360 , With linear
scale, 1000×1455mm footprint.

Worktable Φ110mm, load 10 kg, Max work piece: Φ120*135mm
Control system JD50 NC system, G/M code, macros, deep open development ability.
Drive system AC servo drive.
Positioning accuracy

Full travel, X/Y/Z: 2μm, A/C axis: 6'

Repeatability Full travel, X/Y/Z: 1.8μm, A/C axis: 4'

Spindle Spindle JD105E-32-HE32/F, max. speed 32000rpm, power 5 kW(S6-60%),
torque 2.4 Nm (S6-60%)

Spindle Chiller Jingdiao ZLJB-18-380-C, alarm function kit, real-time display environment temp. & fluid temp, brand: JD, from China.

Tool magazine 21 pcs chain type tool magazine, HSK-E32 tool holder, brand: JD, from China.

Tool calibrator Contact type, P21EDBP-09-06, for tool length calibration, brand: Metrol, from Japan.

Laser calibrator Non-contact type tool length, Nano BL103, diameter measurement, tool diameter>0.05mm, brand: BLUM, from Germany.

In-machine inspection system

In-machine inspection & correction function and interface, Compatible with high
precision probe.

Standard ball For probing and calibration, D25.4mm-L93mm-0.5μm.

Grease Gun SJB-50Z-A (for machine tool);

THK GREASE GUN UNIT (for rotary table)

Air source drying system SMC IDFA6E-23

Oil-mist collector JDAMC300, brand: JD.

Liquid collecting bottle components Brand: JD

Filter system Coolant tank, JDAYX50

Fn. 310 CNC function package:
In-machine inspection function
Measure cloud display
High speed foresight function
Advanced speed optimization features
3D rounded corner compensation function;
Spindle thermal displacement control function

Automation interface

Automatic door;
50 PLC Automation function pack 1&2;
Fixture control: Worktable 4 air rotary joints;

Jingdiao CAD/CAM
Software Surfmill
9.6 （1 set）

CAD functions, including 2D curve modeling module, 3D modeling module, in-
machine measurement module.

CAM function, including 2.5 axis machining path module, 3 axes, 4 axes and 5
axes machining path module, feature processing module, in-machine detection
path module, other parameter analysis module, DT programming function.
