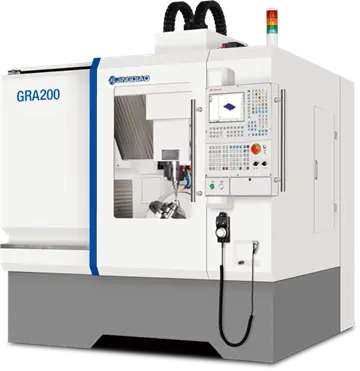

2018 JINGDIAO GRA200 5-Axis VMC

MACHINE SPECIFICATIONS:

X/Y/Z Positioning Accuracy 0.002mm (.0000787’’) Full Stroke
A/C Positioning Accuracy 0.0022 deg (8 sec)
X/Y/Z Repeatability 0.0018mm (.0000709’’) Full Stroke
A/C Repeatability 0.0014 deg (5 sec)
X/Y/Z Travel 500*280*300mm (19.7’’x 11.0’’x 11.8’’)
A/C Travel 210 deg (-120°~90°) / 360 deg
Table size Φ260mm (Φ10.2’’)
Table load capacity 30kg (66.1lbs)
T-slot size 12*18*8mm (.47’’x .71’’x .31’’)
Max distance between Spindle nose to table surface 350mm (13.8’’)
X/Y/Z Feed rate 10m/min (393.7 ipm)
A /C Feed rate 30 / 50 rpm
X/Y/Z Rapid traverse rate 15m/min (590.6 ipm)
A/C Rapid traverse rate 15 /25 rpm
Weight SP-JD105/130: 5600kg (12,346lbs)
SP-JD150: 5900kg (13,007lbs)
Overall Dimensions 2030*2800*2450mm (79.9’’x 110.2’’x 96.5’’)
Drive System AC Servo Drive
LINEAR SCALE X/Y/Z Standard
ROTARY SCALE A/C Standard

JD150S SPINDLE SPECIFICATION:

Spindle speed range 0~20,000 rpm
Power output (S6-60%) 18KW (24.1hp)
Maximum torque (S6-60%) 21.5Nm (190.2lbs-in.)
Spindle taper radial runout ≤0.002 mm
Shank type HSK-A50

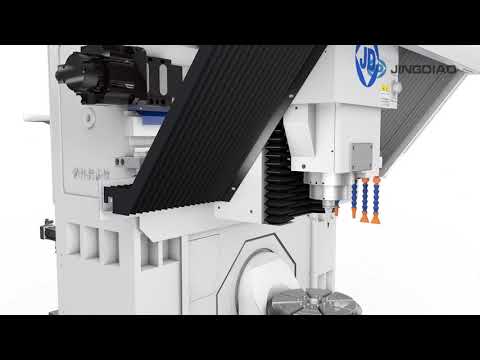

DDM (DIRECT DRIVE MOTOR) ROTARY TABLE
The JINGDIAO GRA200 is equipped with high speed and high accuracy DDM rotary table to realize simultaneous 5-axis motion, and HEIDENHAIN rotary scales are applied in A/C-axis as standard to provide high precision positioning accuracy and repeatability for machining of complex parts with superior accuracy and surface finishes.
Classification Specification
Max load size Φ260 x 280mm (10.2’’ x 11.0’’)
Max load capacity 30kg (66.1lbs)
A-axis motor Drive Type DDM
Range 210° (-120°~90°)
Speed 30rpm
C-axis motor Drive Type DDM
Range 360°
Speed 50rpm

GRA200 – Base Machine Configuration (20,000 rpm)
20,000 RPM + 36 Tool + Chain Style Tool Magazine
(Power 18.0Kw/24.1hp, Torque 21.5Nm/190.2 lbs.-in)
(JD150S-20-HA50/U, 20,000rpm, HSK-A50 Holder)

Probe: Renishaw OMP400 (2σ=0.25um)
Laser Tool Calibrator – Blum Nano BL103
Oil Mist Separator
MQL
Transformer
Ceramic Ball
5 axis JDSoft Surfmill 9.0
