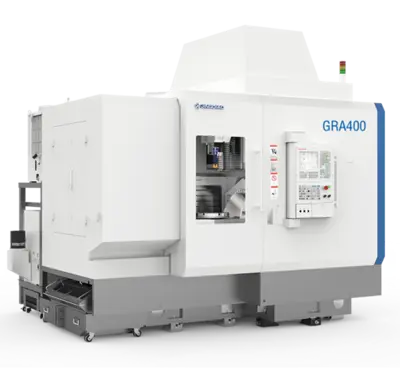

JINGDIAO GRA400 5-AXIS VMC w/ 6-PALLETS
Have one to sell?
ConditionNew
1 available
New
Machine Standard Configuration
Machine Main Body X/Y/Z travel: 450/680/400mm, A travel: -120o/+90o, C travel: 360 o , With linear scale, 3100×2230 mm footprint.
Worktable Φ400mm, load 150 kg, Max work piece: Φ400mm
Control system JD50 NC system, G/M code, macros, deep open development ability.
Drive system AC servo drive.
Positioning accuracy Full travel, X/Y/Z: 2μm, A/C axis: 6".
Repeatability Full travel, X/Y/Z: 1.8μm, A/C axis: 4".
Spindle Spindle JD150SC-20-HA50, max. speed 20000rpm, power 18kW(S6-60%), torque 21.5Nm (S6-60%)
Spindle Chiller Jingdiao ZLJBE-18-380-C, alarm function kit, real-time display environment temp. & fluid temp
Tool magazine 53 pcs chain type tool magazine, manipulator, HSK-A50 tool holder,.
Tool calibrator Contact type, for diameter>0.1mm tools, for tool length calibration, brand: Metrol, from Japan.
Laser tool calibrator Non-contact type tool length, Micro A2 BL103, diameter measurement, tool diameter>0.05mm, brand: BLUM, from Germany.
In-machine measurement system In-machine measurement & correction function and interface. Compatible with high precision probe Renishaw OPM400
High precision probe Select from Renishaw OPM400
Standard ball For probing and calibration, (D25. 4nm-L93mm-0.5μm)
5Mpa center outlet water bag-type filter system -
Oil mist collector GL370
Chip Disposal System Scraper chip conveyor.
Hydraulic pump station -
In-machine spraying system -
Network monitoring function -
Machine Standard Configuration
Machine Main Body X/Y/Z travel: 450/680/400mm, A travel: -120o/+90o, C travel: 360 o , With linear scale, 3100×2230 mm footprint.
Worktable Φ400mm, load 150 kg, Max work piece: Φ400mm
Control system JD50 NC system, G/M code, macros, deep open development ability.
Drive system AC servo drive.
Positioning accuracy Full travel, X/Y/Z: 2μm, A/C axis: 6".
Repeatability Full travel, X/Y/Z: 1.8μm, A/C axis: 4".
Spindle Spindle JD150SC-20-HA50, max. speed 20000rpm, power 18kW(S6-60%), torque 21.5Nm (S6-60%)
Spindle Chiller - Jingdiao ZLJBE-18-380-C, alarm function kit, real-time display environment temp. & fluid temp
Tool magazine - 53 pcs chain type tool magazine, manipulator, HSK-A50 tool holder,.
Tool calibrator - Contact type, for diameter>0.1mm tools, for tool length calibration, brand: Metrol, from Japan.
Laser tool calibrator - Non-contact type tool length, Micro A2 BL103, diameter measurement, tool diameter>0.05mm, brand: BLUM, from Germany.
In-machine measurement system - In-machine measurement & correction function and interface. Compatible with high precision probe Renishaw OPM400
High precision probe - Select from Renishaw OPM400
Standard ball - For probing and calibration, (D25. 4nm-L93mm-0.5μm)
5Mpa center outlet water bag-type filter system
Oil mist collector GL370
Chip Disposal System Scraper chip conveyor.
Hydraulic pump station
In-machine spraying system
Network monitoring function
PALLET AUTOMATION
Loading mode: One automatic stocker to One GRA400
Manipulator integrated inside the structure
Capacity: 6 pcs pallets
Max. load: 150 kg
Air supply pressure ≥0.6MPa
Control system JMS
Control system & electrical cabinet Material management
Task assignment
Safety mechanism: Interlock, Indicator, Beeper
Configure 50 CNC automation software package and hardware package
Automatic door on the left side
Fixture Erowa chuck
Pallet: 6 pcs
Rotary joint Four (4) port rotary joint and table center shaft
