JINGDIAO CTA600 VERTICAL MACHINING CENTER

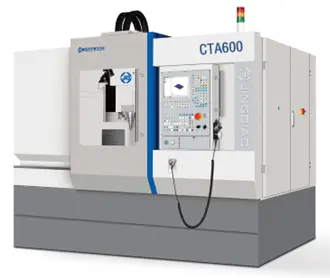

JINGDIAO CTA600 3-Axis VMC:

EQUIPPED WITH:
Spindle (JD130S-24-BT30)
Chain Type Tool Magazine (28 pcs)
Integrated Machine Cooling System-Spindle Chiller and Electrical Control Cabinets.
JD 50 NC System With English Interface
JINGDIAO Contact Tool Calibrator
Oil-mist Collector
Disc type oil-water separation device
MQL
Renishaw OMP400
Manual Pulse Generator(MPG)
Grease Gun

WORKTABLE:
Size (mm) 650×650
T slots dimension (mm)×number 12×21×7
Load (Max) (kg) 300

MACHINE SIZE AND WEIGHT:
Size of machine part (mm) 1970×2010×2210
Whole size (mm) 2840×3120×2210
Machine total weight (kg) 5800

FEEDING HEIGHT:
Max from Z-axis bottom to worktable (mm) 430

NC CONTROL SYSTEM: JD 50

SERVO DRIVE SYSTEM: Digital AC servo drives

POWER SOURCE:
Power voltage (V/Hz) 3 phase 380V/50Hz
Total power capacity (kVA) 16.5
Gas consumption (L/min) 200
Air required (MPa) 0.52

MACHINING AREA:
X-axis (mm) 600
Y-axis (mm) 500
Z-axis (mm) 300

FEED RATE:
Rapid traverse /rotation rate X/Y/Z (m/min) 18

POSITION ACCURACY:
X:0.008/600 (mm)
Y:0.008/500 (mm)
Z:0.006/300 (mm)

REPEATABILITY:
X:0.005/600 (mm)
Y:0.005/500 (mm)
Z:0.005/300 (mm)
